Site Intercommunal de l’Union

Urban designPublic spaces
Roubaix, Tourcoing, Wattrelos
Carta - Reichen et Robert Associates - Site Intercommunal de l’Union

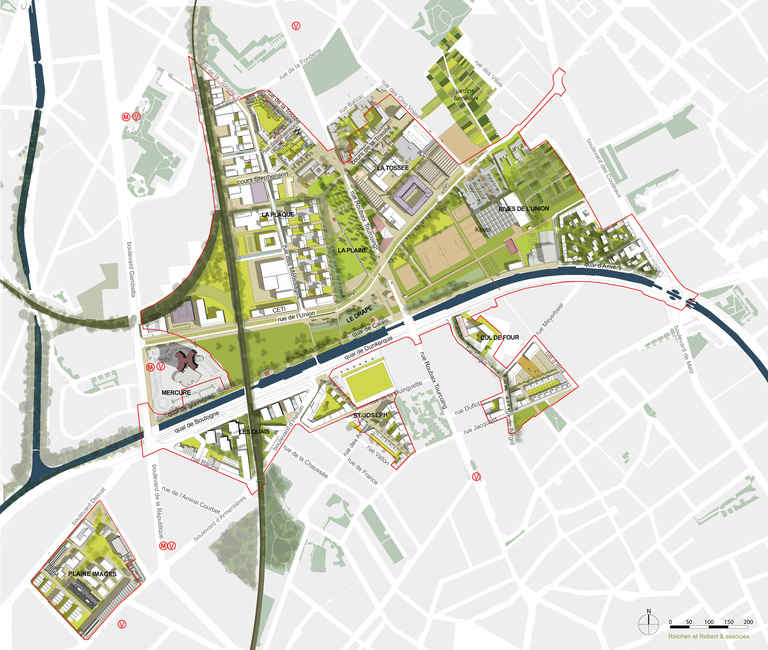

Developed Master Plan for development of the l'Union intercommunal site. 100,000 m² of economic activities grouped around media and textiles, approximately 1,500 housing units, one facility at metropolitan scale and local facilities.
Head urban designer, operational development and project supervision commission for the primary infrastructures for the ZAC Union mixed development zone. (Major roadways)
Finalisation and monitoring of the development Master Plan, compiling block plans.

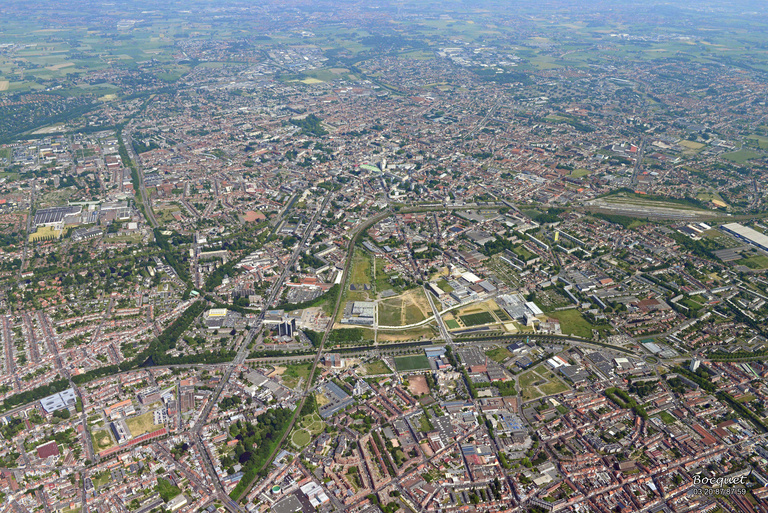

L'Union is one of the most important urban renewal projects in France. Once predominantly industrial, this 80-hectare site is now more or less free of its former buildings. L'Union is a piece of the city to be created, invented, and woven into the existing urban fabric. Exemplary in terms of sustainable development, the urban renewal project calls for strong interlocking of housing and economic activities.
L'Union, the first eco-quarter in the Lille Métropole, is in line with a policy of sustainable development both in its development and its future management: Remediation of pollution on the plots, limitation of waste production, organisation of the water cycle, management of mobility, participation, etc.

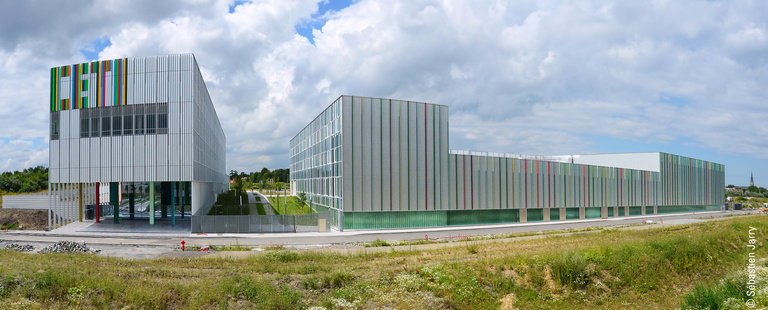

As a hub of economic excellence, l'Union plays a part in the economic revitalisation of the Lille metropolitan area, and more particularly its northeast side, one of the densest in the conurbation. The economic dynamic of l'Union is organised around two areas of excellence. The first is centred on image, culture and media and the second is dedicated to innovative textiles.
A vast construction programme of 1,400 new housing units is also planned for l'Union. These units - individual or collective - will be offered either for purchase or lease, with leased subsidised housing accounting for 30% of the total number. Eventually, l'Union will be home to 3,000 employees and 3,000 residents.

The seven places of l'Union
La Tossée is designed as an “interior”, where the spaces are integrated and designed within a single whole, without systematic definition of the plot or of the street, but in the spirit of a community of spaces and services (parking, management of water, waste, energy, etc.) The continuity of the narrative of the Cité Tossée creates a palimpsest on the warp and weft of the past whose fabric becomes part of the contemporary city.

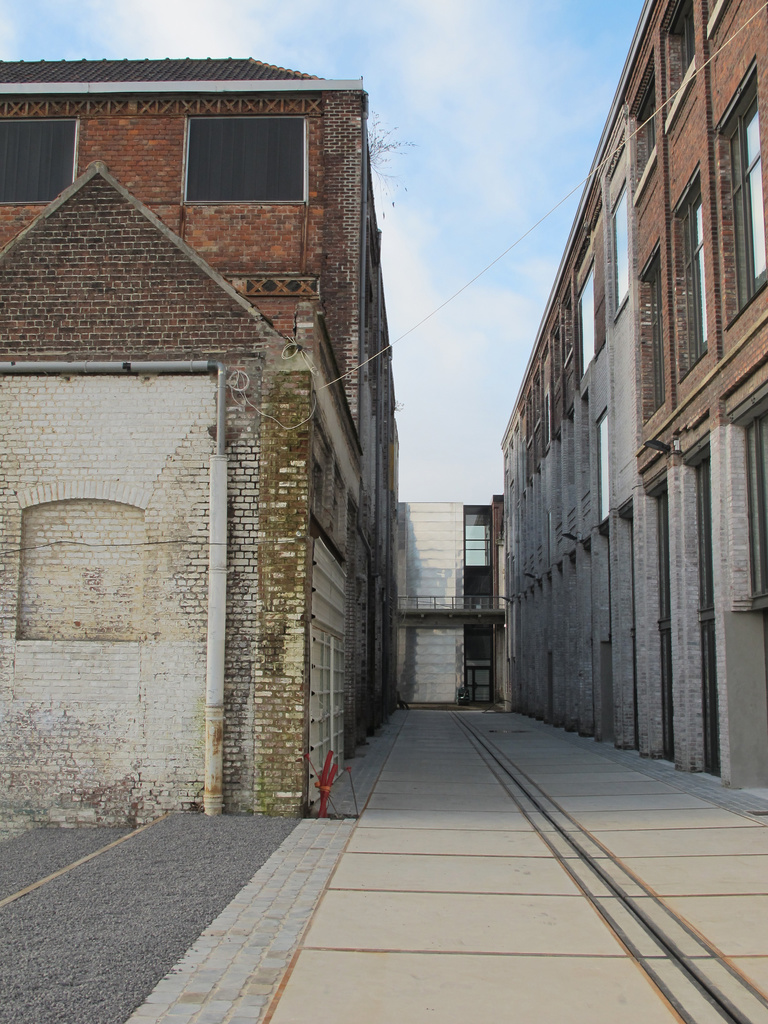

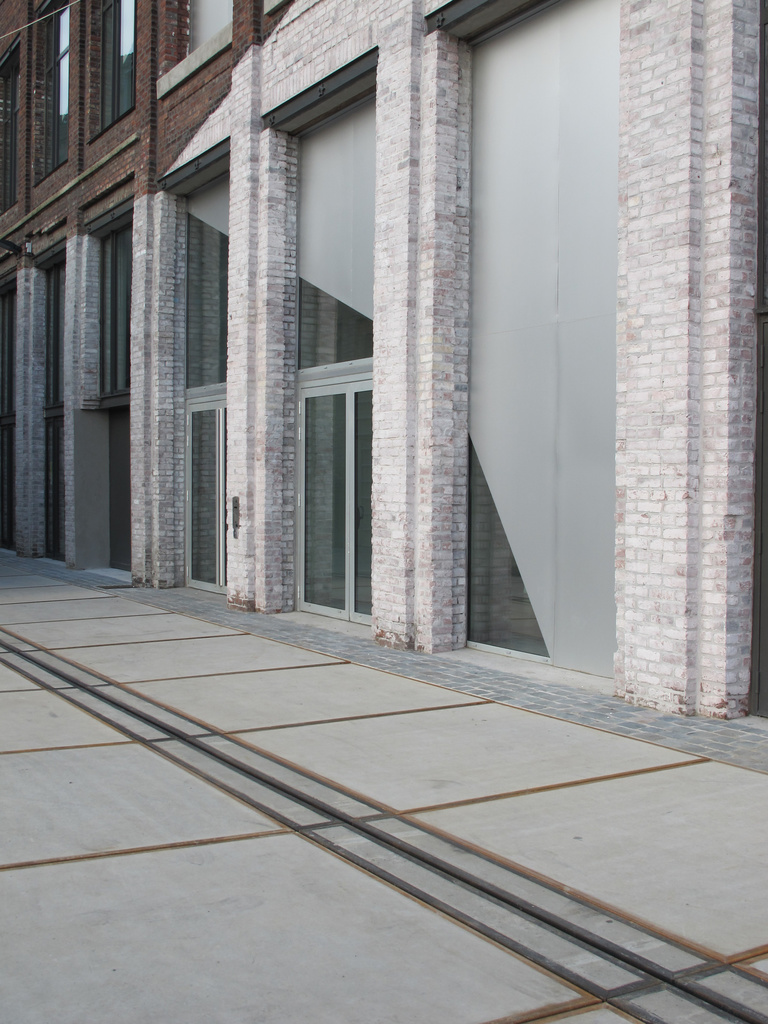

Thus the notion of “street” identified in the Master Plan fades and is reintroduced into “courtyards”; the logic of spaces that are served and spaces that serve leaves room for a tangle of uses and services. The former rails and the ground paintings are the only “Ariadne's threads” of past and present journeys, in a patchwork of materials without “hems”.

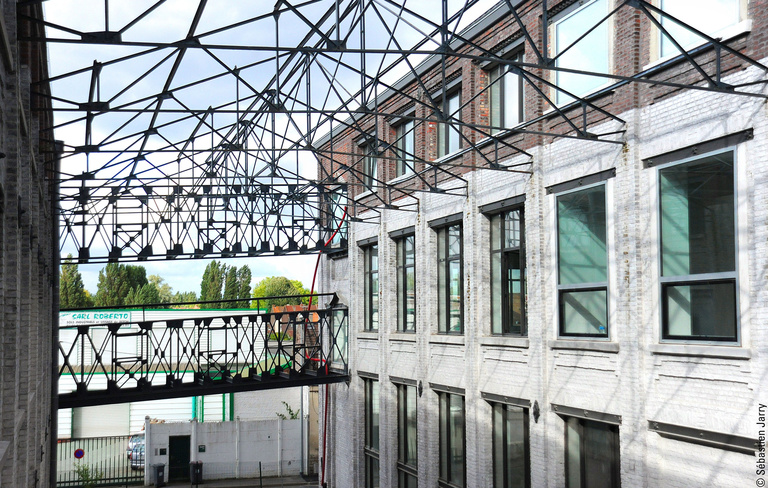

The seven places of La Tossée, then, are not determined by their status (public, private or shared) but by new usages, vestiges that are reused, ambiances that pre-exist and can be reinterpreted–rewritten.
Seven “families” of places are identified in this way. Each contains spaces that share characteristics of use and of form (courtyards, passages, gardens, scenographic spaces, etc.). Therefore they adopt shared characteristics as regards ground treatment, lighting, introduction of greenery, etc.


Delivery : 2019

Grand Prix National EcoQuartier award 2011
Urban design commission

Developed Master Plan: 2005
Assistance to Project owner: 2005
Master Plan: 2012
Pre-project design (AVP): 2010
Project design (PRO): 2014
Start of construction: 2011
Architectural monitoring of operational phases

Project Owner
SEM Ville Renouvelée

Project Supervision
Reichen et Robert & Associés
Landscaping: EPURE
Design office, Roadways and Utility Networks: MAGEO
Lighting designer: CONCEPTO

Area
74 ha, perimeter of ZAC (mixed development zone)
450,000 m² net floor area
180,000 m², tertiary
100,000 m², economic activities
120,000 m², housing (1,500 units)
10,000 m², shops and services
20,000 m², facilities
40,000 m², other

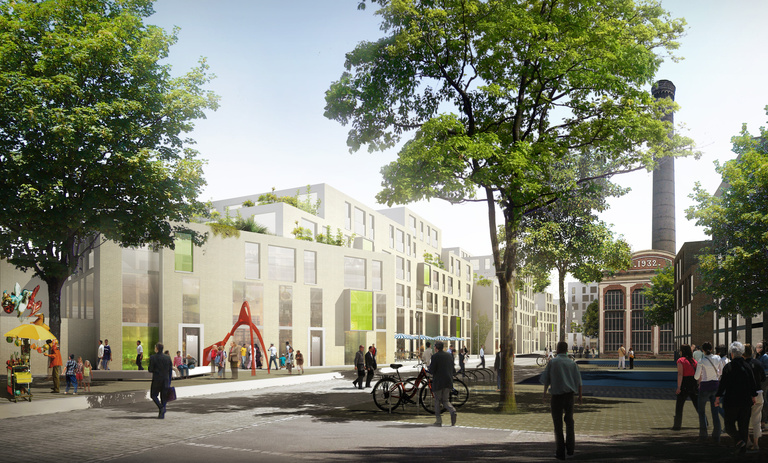

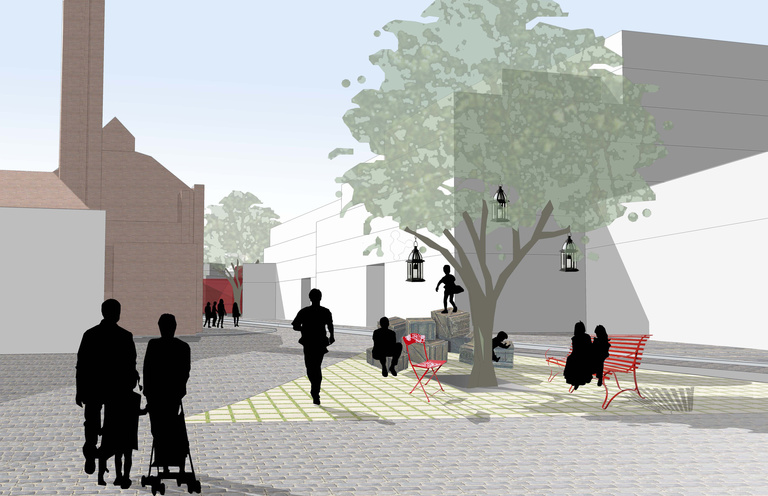

Perspectives
Platform, Reichen et Robert & Associés, Empreinte

Photographers
DR, SEMVR, Boquet

Carta - Reichen et Robert Associates - plan gÇnÇral-160122.jpg
Carta - Reichen et Robert Associates - Vue aerienne ∏Bocquet-SEMVR.jpg
Carta - Reichen et Robert Associates - RR&A∏Platform_vue triangle 01.jpg
Carta - Reichen et Robert Associates - RRA∏jardin1.jpg

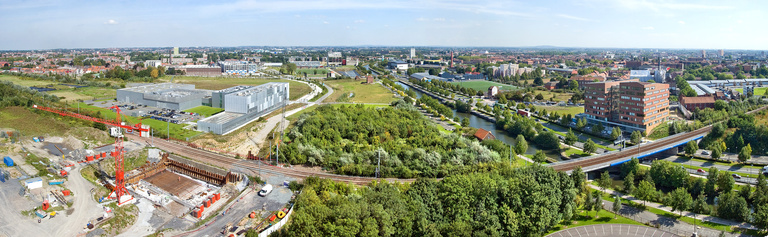

Carta - Reichen et Robert Associates - UnionPanoramique4.jpg
Carta - Reichen et Robert Associates - Union54-SEMVR.jpg
Carta - Reichen et Robert Associates - RR&A∏Platform_vue tosse 05.jpg
Carta - Reichen et Robert Associates - Ceti44_BD.jpg
Carta - Reichen et Robert Associates - Eurodal EntrÇe Tossee.jpg
Carta - Reichen et Robert Associates - Union14.jpg
Carta - Reichen et Robert Associates - Union60.jpg
Carta - Reichen et Robert Associates - 02.jpg
Carta - Reichen et Robert Associates - 25-SEMVR.jpg
Carta - Reichen et Robert Associates - RR&A∏Platform_vue place 03.jpg
Carta - Reichen et Robert Associates - Parvis CETI.jpg

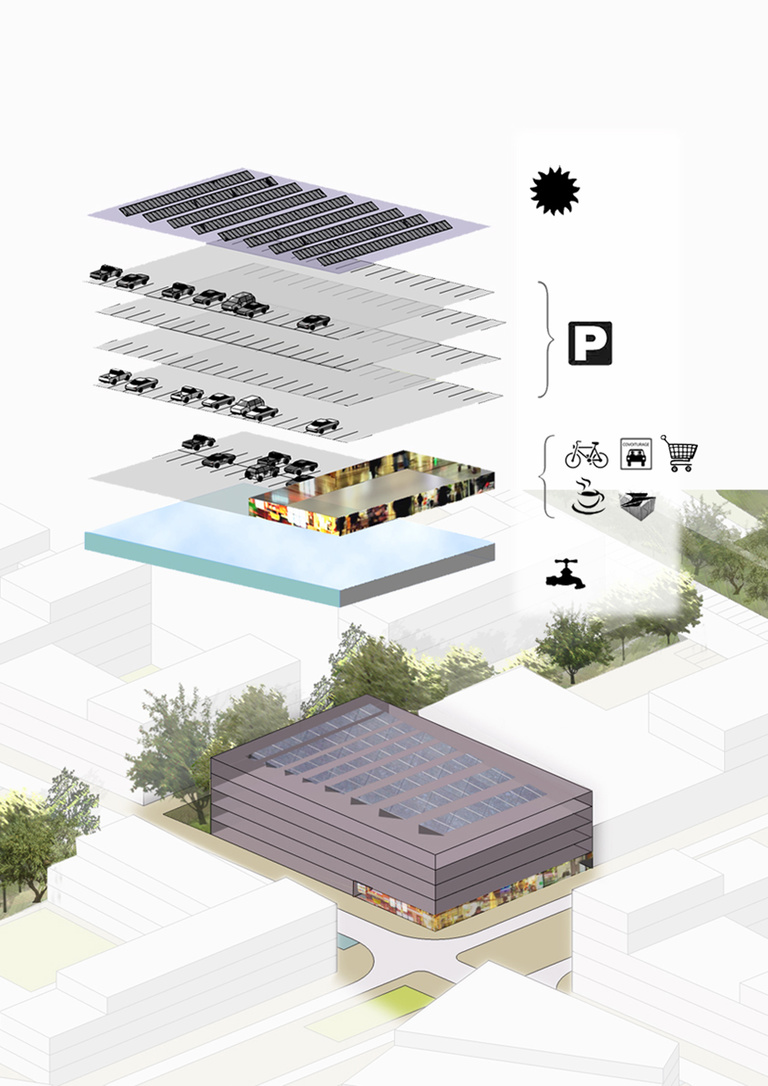

Carta - Reichen et Robert Associates - schÇma silo 090114.jpg
Carta - Reichen et Robert Associates - RR&A∏Platform_parc.jpg
Carta - Reichen et Robert Associates - RR&A∏Platform_vue rue nantes 03.jpg
Carta - Reichen et Robert Associates - 39-SEMVR.jpg
Carta - Reichen et Robert Associates - Eurodal EntrÇe Sud Tossee.jpg
Carta - Reichen et Robert Associates - 05.jpg
Carta - Reichen et Robert Associates - Tossee.jpg
Carta - Reichen et Robert Associates - RRA∏jardin3.jpg

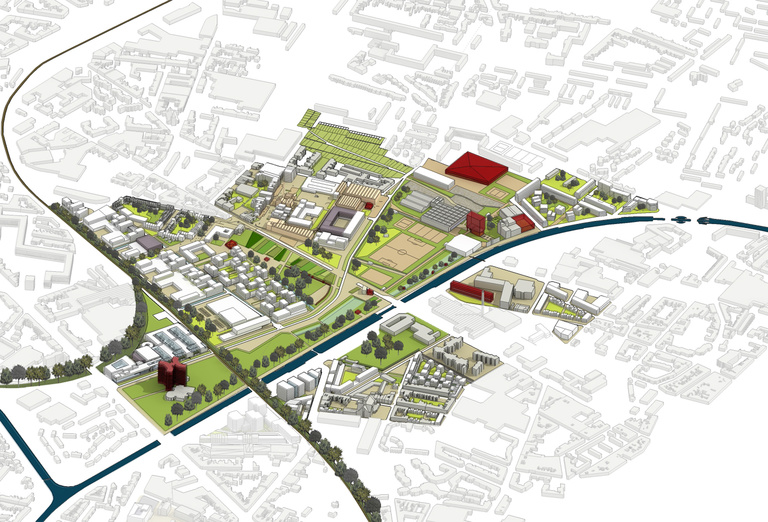

Carta - Reichen et Robert Associates - plan global axo .jpg

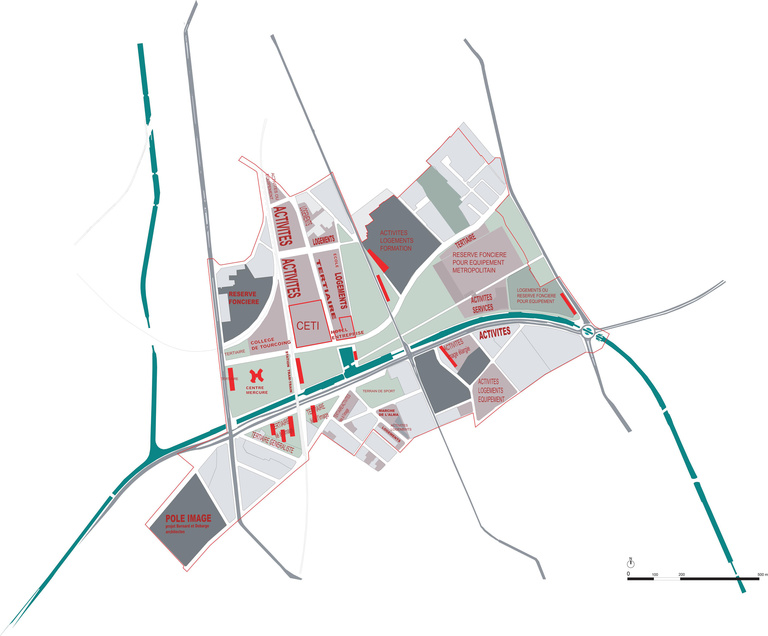

Carta - Reichen et Robert Associates - 2006-01-17 plan programme copie.jpg
