Siège Alstom Plant

Siège Alstom Plant

Services sector
Belfort
Carta - Reichen et Robert Associates - Siège Alstom Plant

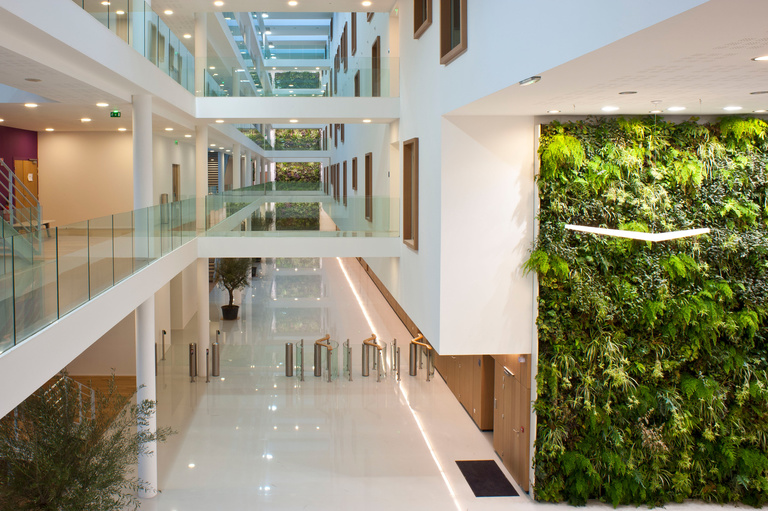

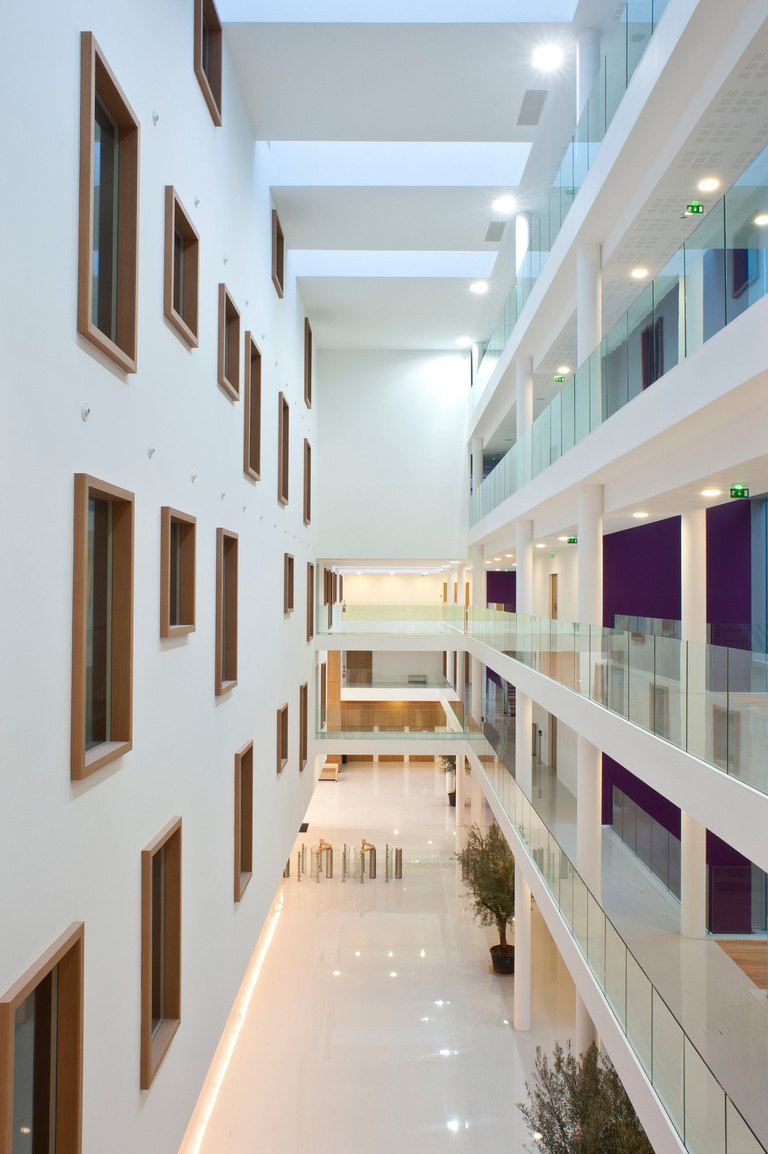

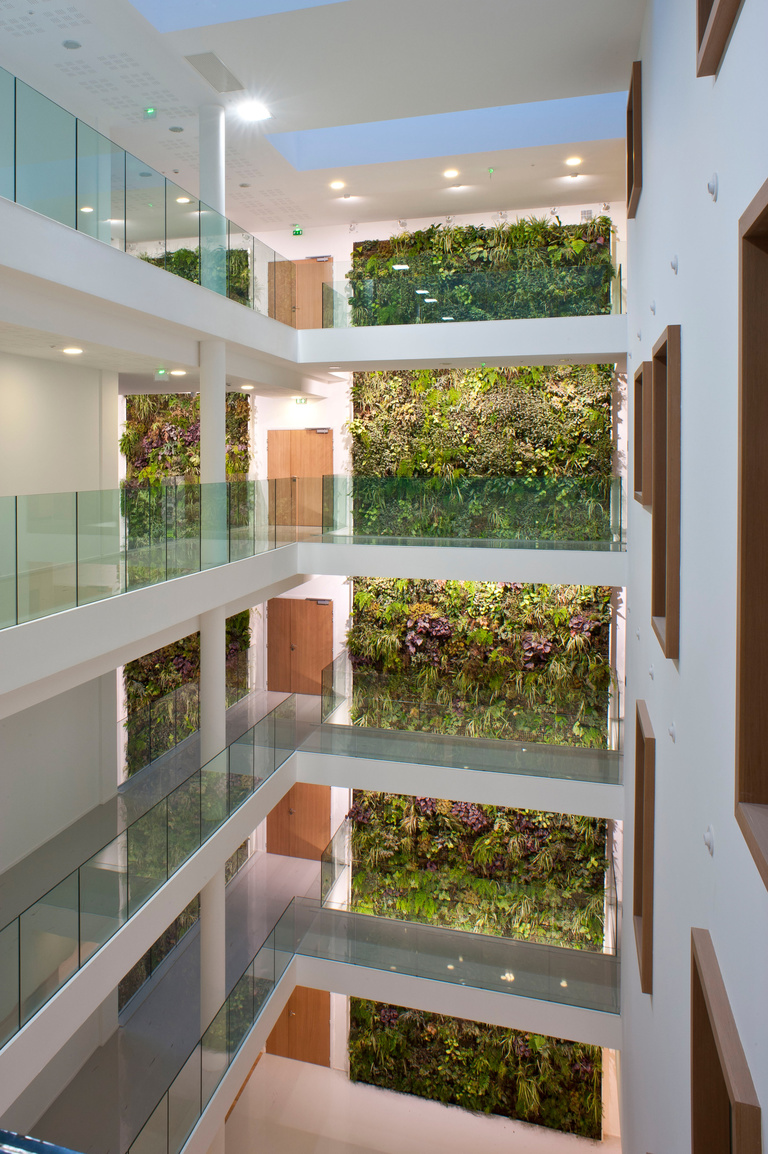

Construction of an office building for Alstom Power Centrales. The building adheres to the HQE guidelines. The building comprises five levels of offices (ground floor + 4 stories) above an underground car park with 100 spaces. The five office levels are accessible via the main hall located at the southeast corner of the building via a large interior street open to all five levels. This street is lit by broad curtain walls opening on interior patios and by skylights punctuating the roof. The street is punctuated by walkways and two high vegetated walls which animate the interior street, one in contact with the main entry hall and the other at the end of the perspective, providing an 18 m height for the wall.

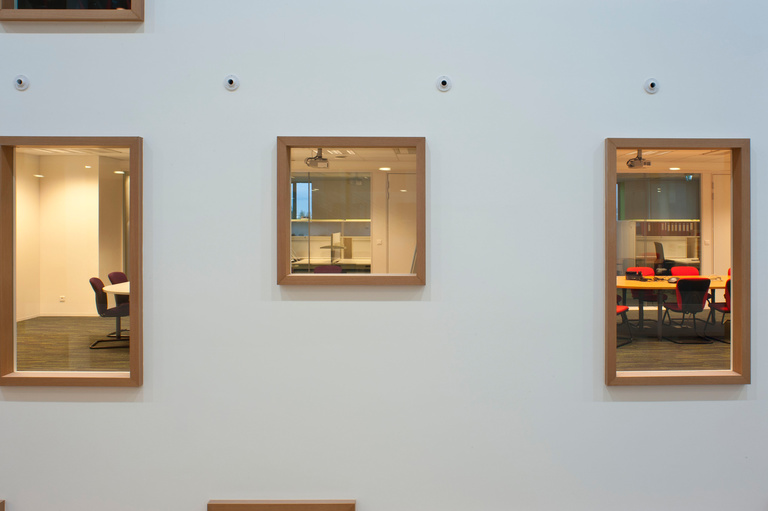

User comfort is prioritised through the use of natural light for all work stations, with all windows able to be opened by users (which also facilitates maintenance of the glass). All terraces will be accessible at floor level and have fixed protection barriers. Certain terraces will be vegetated to improve their integration into the site. The orientations towards the sun will be used to better regulate the use of air conditioning, and the system will also be managed and controlled by a global BMS.

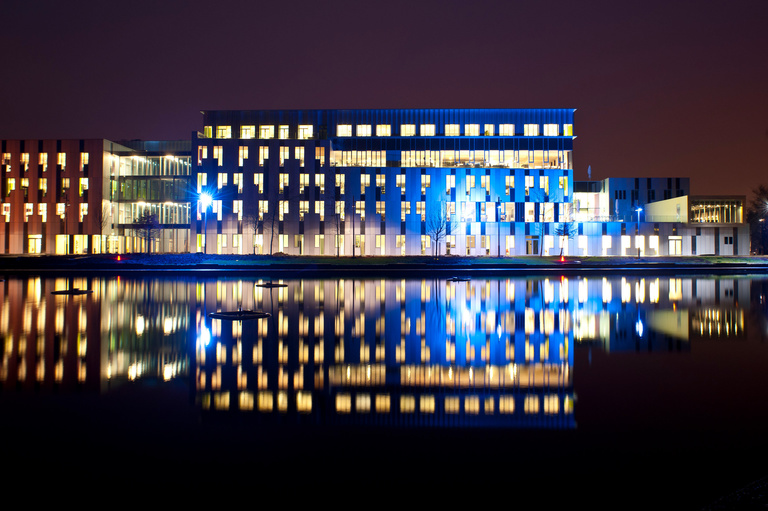

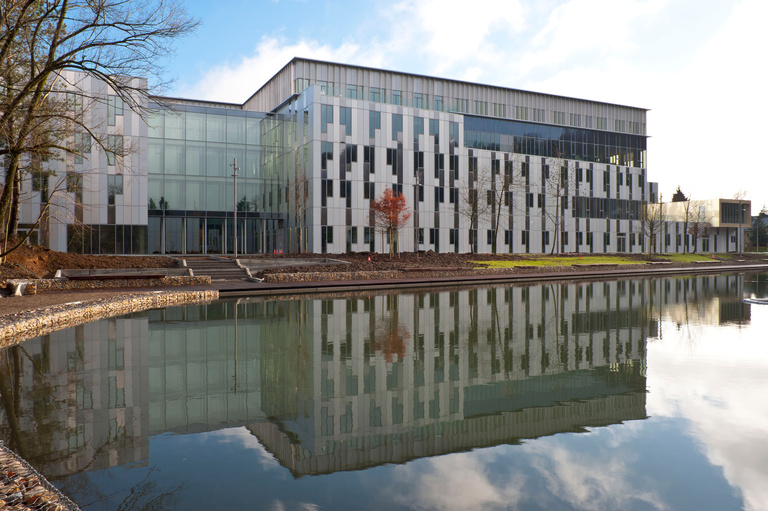

Through its architecture, the new building will reflect its environment with a metal skin which plays on the contrasts of light reflecting on three types of panels: natural aluminium panels – stainless-steel mirror panels – aluminium-zinc panels.

As a whole, the new building gives the Aillettes and Cravanche site a new élan and a new image, reflecting the new dynamism of the site initiated by the Techn'Hom ZAC (mixed development zone).


Delivery : 2010

Project supervision commission

Project owner
Sempat

Architects
Reichen et Robert & Associés
Construction architect
Atelier Cevirgen

Co-contractor(s)
Structural design office: Santini ingenierie
Electrical design office: Enebat
Fluids design office: Henry
Technical inspection: Véritas
Health and Safety Coordinator: ATR
Roadways and utility networks: BEJ
Construction management: Triau
HQE design office: Cap Terre

Area
15,000 m² net floor area

Project value
€21 M tax excluded (excluding roadways and utility networks)

Environmental certification (HQE)
RT2005 thermal regulation - compliant with HPE 2005 label
HQE certification by Certivéa: NF Tertiary Building HQE certification

Photographers
©Persona Production
©Marc Warnery_
